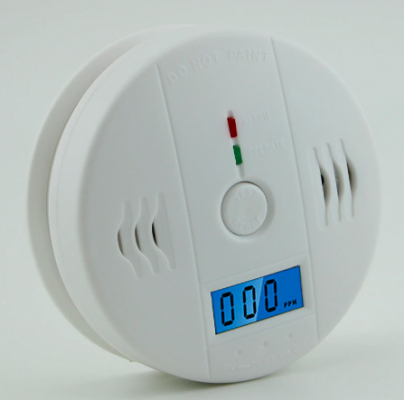

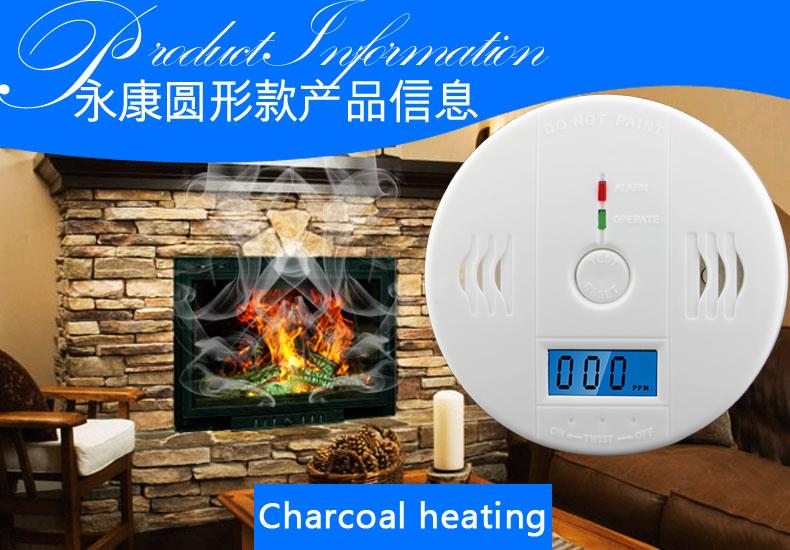

Smoke and Carbon Monoxide Detector

Ensure the safety of your loved ones with this Smoke and Carbon Monoxide Detector. It is extremely easy to operate, providing peace of mind for you and those around you!

Product Description:

Sensitivity/Alarm Time:

Within 60~90 minutes at 50ppm CO concentration;

Within 10~40 minutes at 100ppm CO concentration;

Within 3 minutes at 300ppm CO concentration

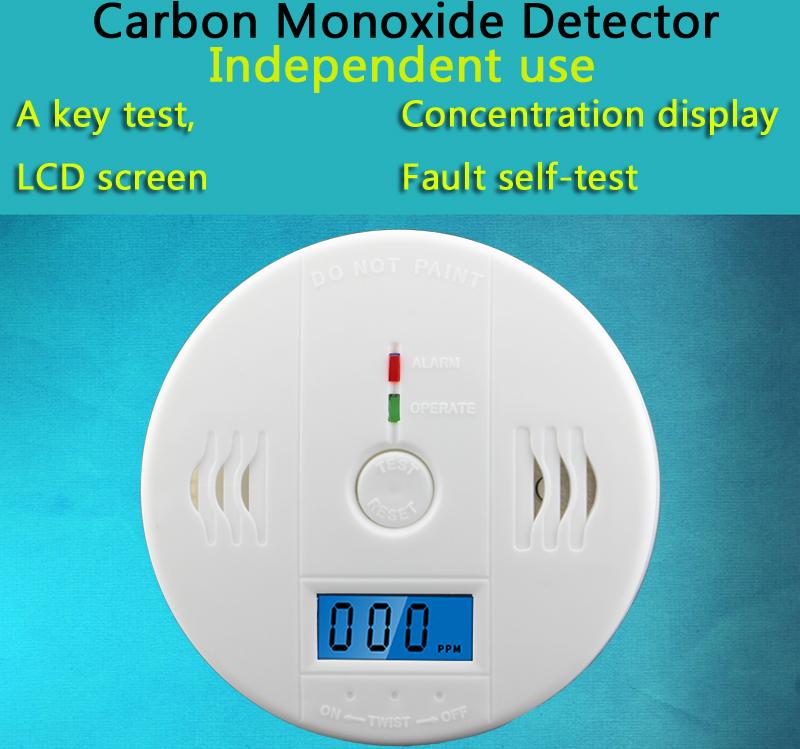

LCD Display (optional): 4 digit LCD display

Audibility: 85dB ( at 1m distance), Frequency 3 - 0.5KHZ

Standby Current: <50μA

Alarm Current: <50mA

Standby Mode: Green LED blinks once every 30 seconds

Alarm Mode: Red LED rapidly blinks 4 times accompanied by chirping every 5 seconds, then repeats,

Low-battery Indicator: Chirps every 30 seconds when battery is below 3.3V, with green LED flashing and Lb shown on LCD

Mal-function Indicator:

Chirps every 30 seconds with green LED off and Err displayed on LCD

Power consumption: 0.3mW

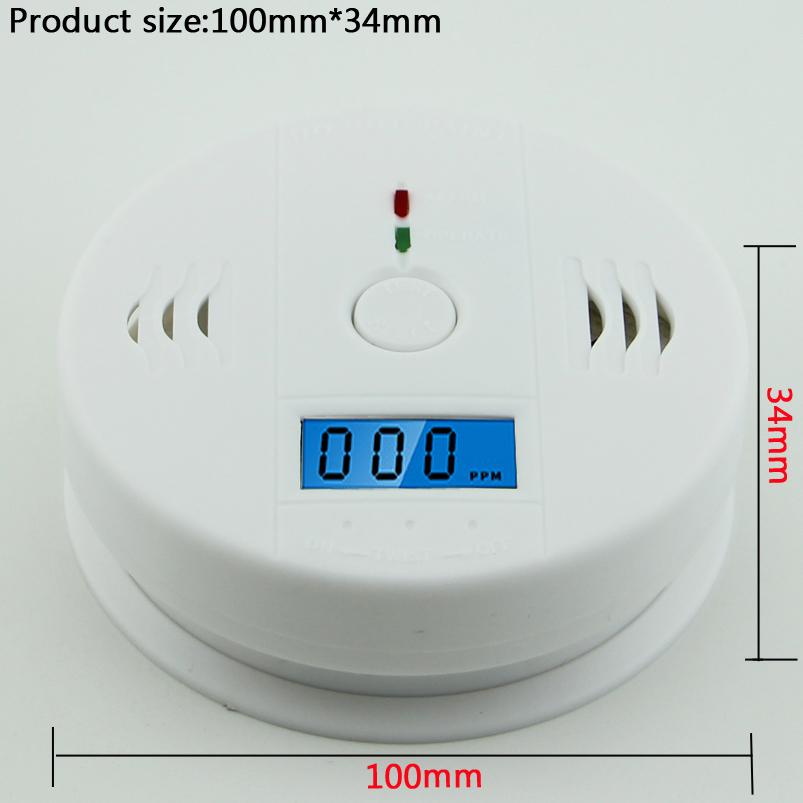

Dimensions: 10 x 4cm

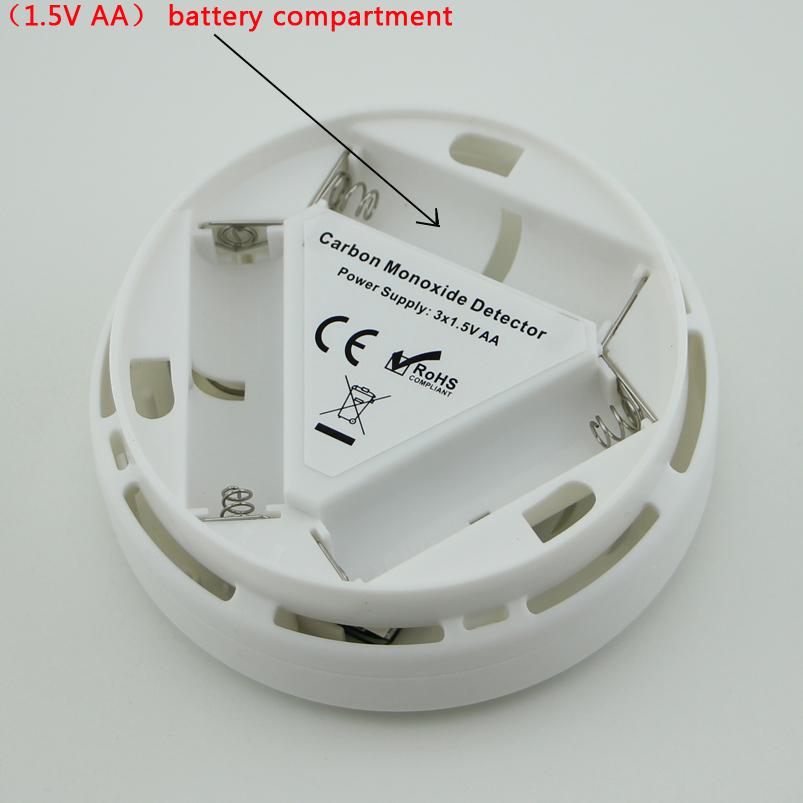

Powered By: 3 x AA Batteries (not included)

An essential device for shielding your family from carbon monoxide hazards

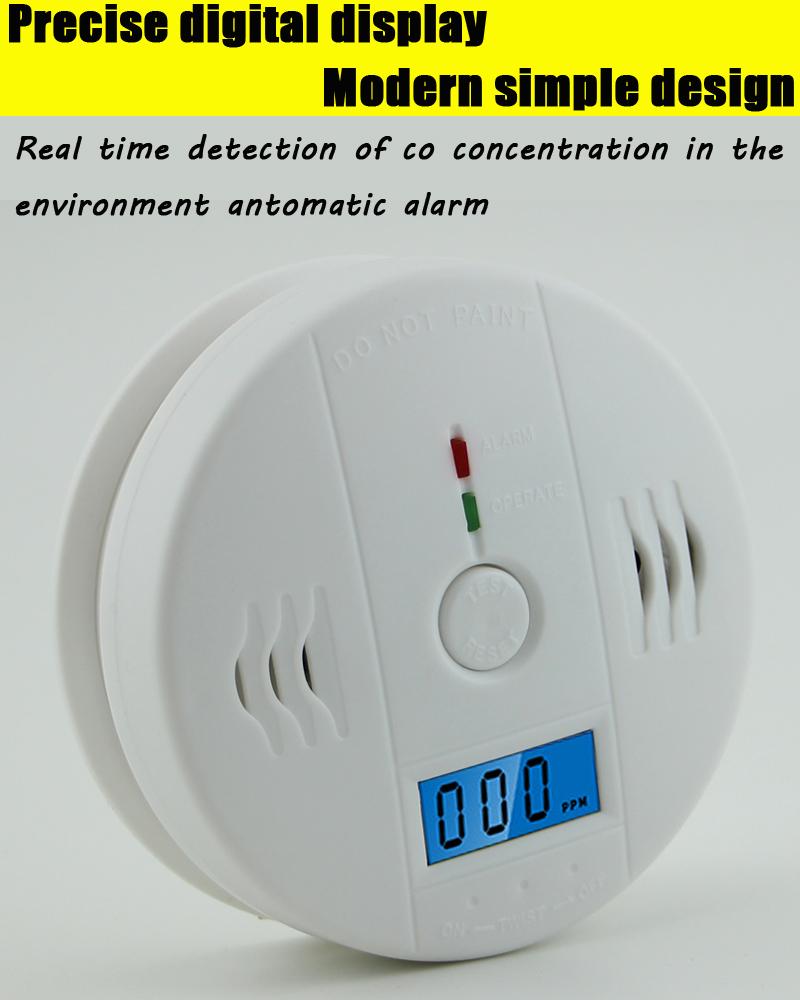

Provides a superior level of protection, easily readable with the digital display, even in dim lighting

Shows the carbon monoxide levels that the device is detecting

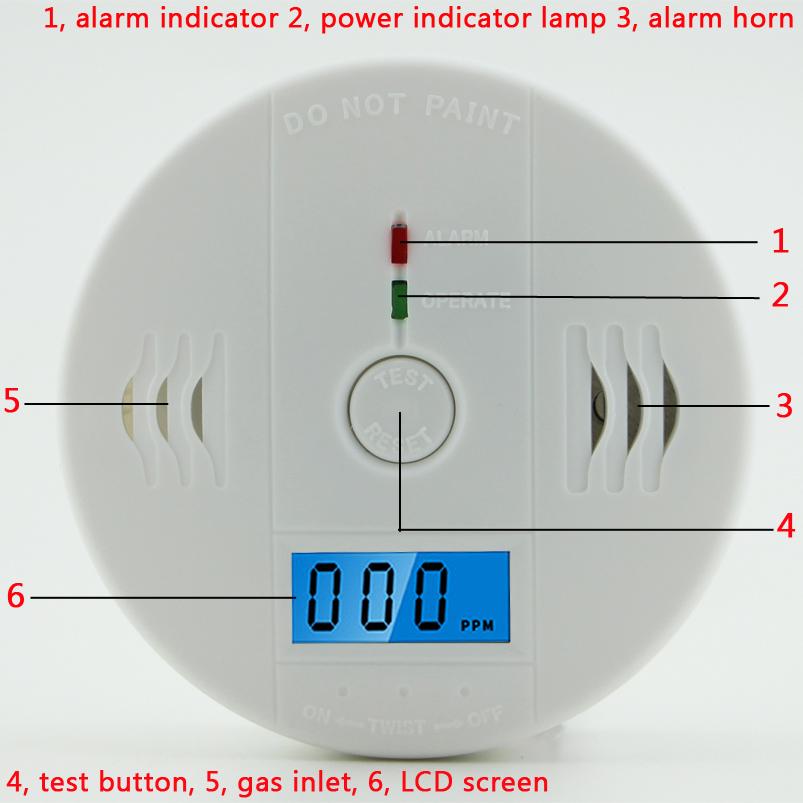

Green LED: Blinks every 30 seconds confirming the device is functioning correctly. The green LED will also blink before a CO reading is taken and when any button is engaged.

Red LED: When hazardous carbon monoxide levels are identified, the red LED will flash, and a loud alarm sound will activate. The alarm pattern consists of 4 short beeps, followed by 5 seconds of silence, and then 4 short beeps with a corresponding red LED flash. This sequence will persist for 4 minutes and then switch to 1 cycle every minute until the unit is reset or the CO is cleared.

The Test/Reset button is intended for weekly checks to verify functionality

and to reset the unit during a CO alarm

Notifies users when it’s time to replace the batteries

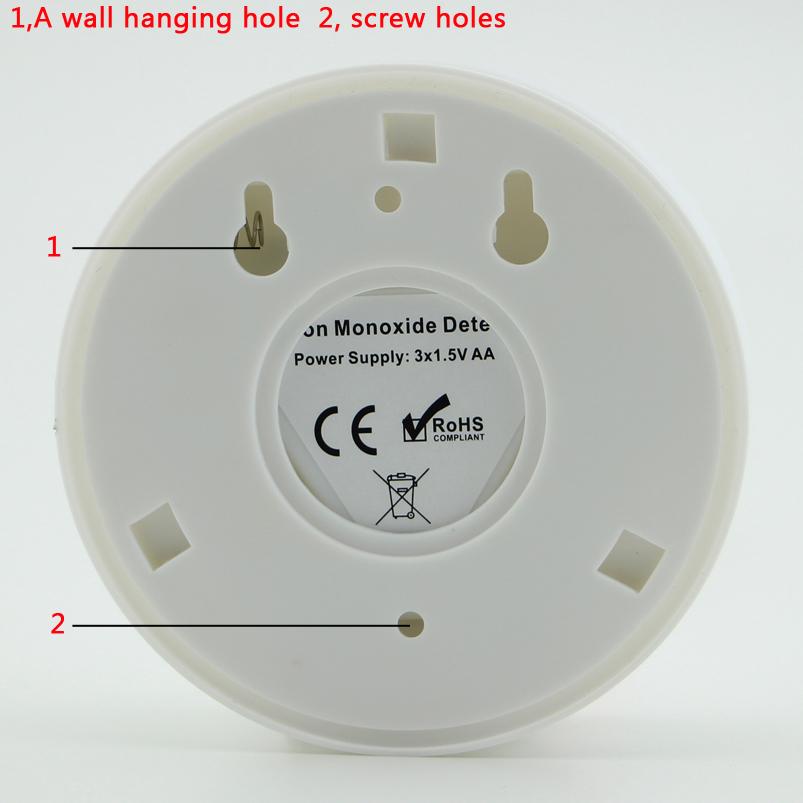

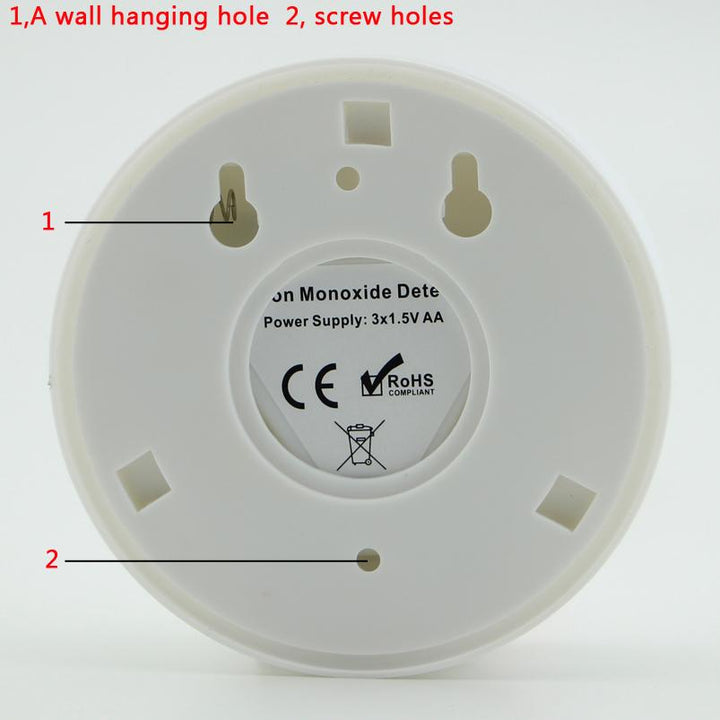

This alarm is strongly advised to be installed on a wall surface

Compact, lightweight & user-friendly
