BowLift | KC-KVM203DH Triple Monitor KVM Switch | 8K 30Hz & 4K 144Hz | HDMI 2.1 & DP 1.4 | 4-Port USB 3.0 Hub | Extended & Mirror Mode | EU Plug

High-Bandwidth Triple-Display KVM Control System

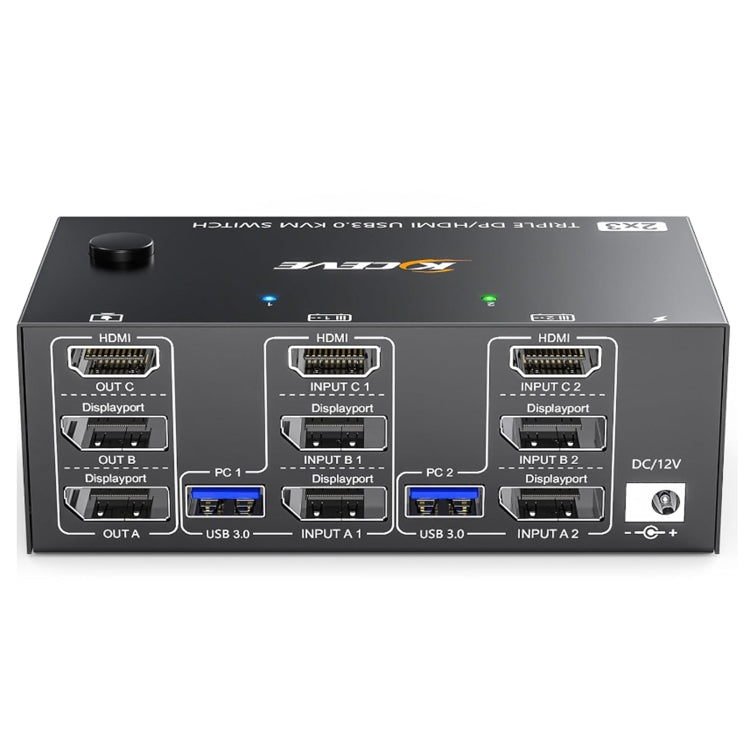

The BowLift KC-KVM203DH is a high-performance hardware switch engineered for the simultaneous management of two workstation inputs utilizing a single peripheral set. This unit facilitates a Triple-Monitor Output (2x DP, 1x HDMI), supporting advanced data rates required for 8K ultra-high-definition and high-refresh-rate 144Hz video playback.

Technical Engineering & Signal Specifications

• Multi-Protocol Video Standards: Fully compliant with HDMI 2.1 and DisplayPort 1.4 specifications. The system utilizes a built-in automatic adjustment algorithm to maintain signal integrity and stability across extended display topologies.
• Dynamic Display Configurations: Supports Extended, Mirrored, and Tiled-Wall output modes. The switch handles Deep Color technology for high-fidelity chroma representation.

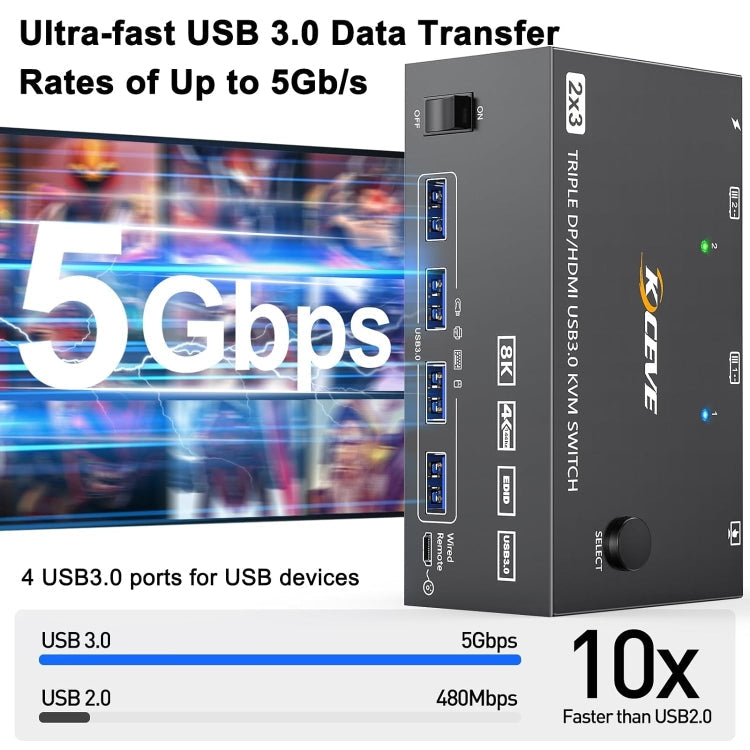

• SuperSpeed USB 3.0 Integration: Features a 4-port USB 3.0 hub facilitating data transfer speeds up to 5Gbps for high-speed storage devices, webcams, and HID peripherals.

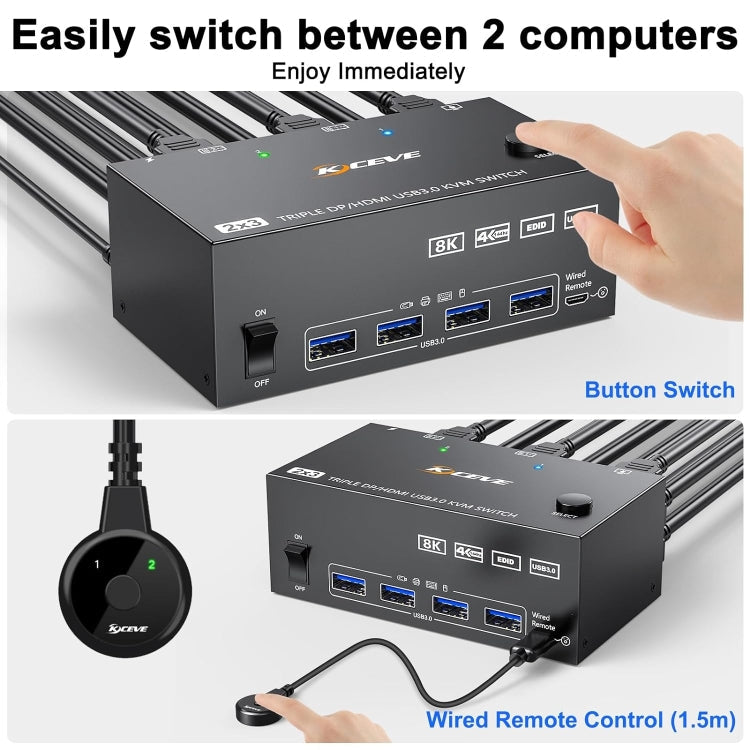

• Dual Switching Logic: Command switching is facilitated via a physical tactile button on the chassis or an included wired remote controller for desk-under-mount accessibility.
• Integrated ESD Protection: Features internal electrostatic discharge (ESD) protection circuitry to prevent hardware damage from voltage spikes during cable hot-swapping.

Technical Product Specifications:

• Video Standards: HDMI 2.1, DisplayPort 1.4
• DP Resolution: Up to 8K@60Hz/30Hz, 4K@144Hz/120Hz
• HDMI Resolution: Up to 8K@60Hz/30Hz, 4K@60Hz
• USB Protocol: USB 3.0 (Backwards compatible with 2.0/1.1)
• Power Interface: DC 5V-12V (Max 5W Consumption)
• Operating Parameters: Temperature -5℃ to +70℃; Humidity 5% to 90%

Signal Distance Limits:

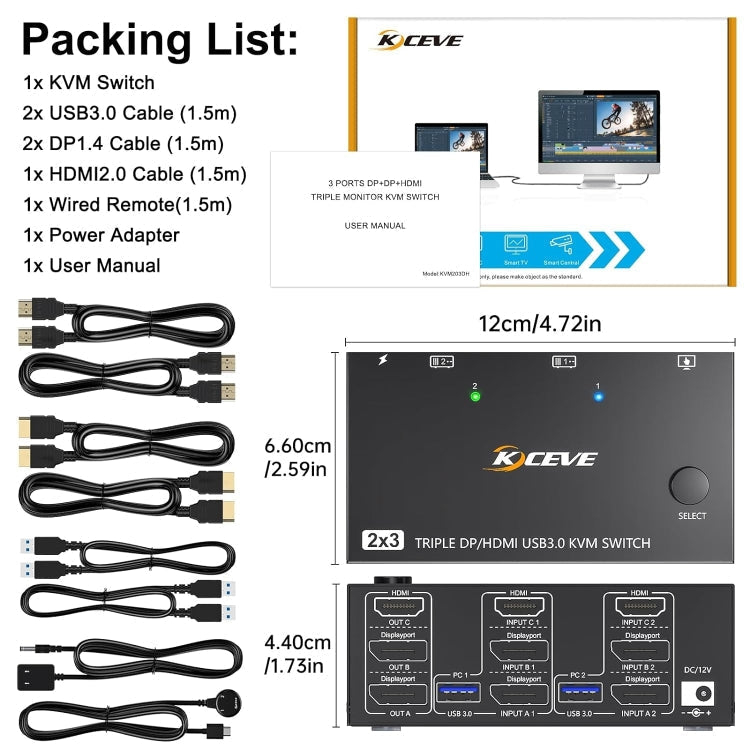

Hardware Inventory:

• 1x BowLift Triple Monitor KVM Switch (KC-KVM203DH)
• 1x Wired Remote Control Extension
• 1x Power Adapter (EU Plug)
• 1x Technical Installation Manual

Installation & Operational Protocol:

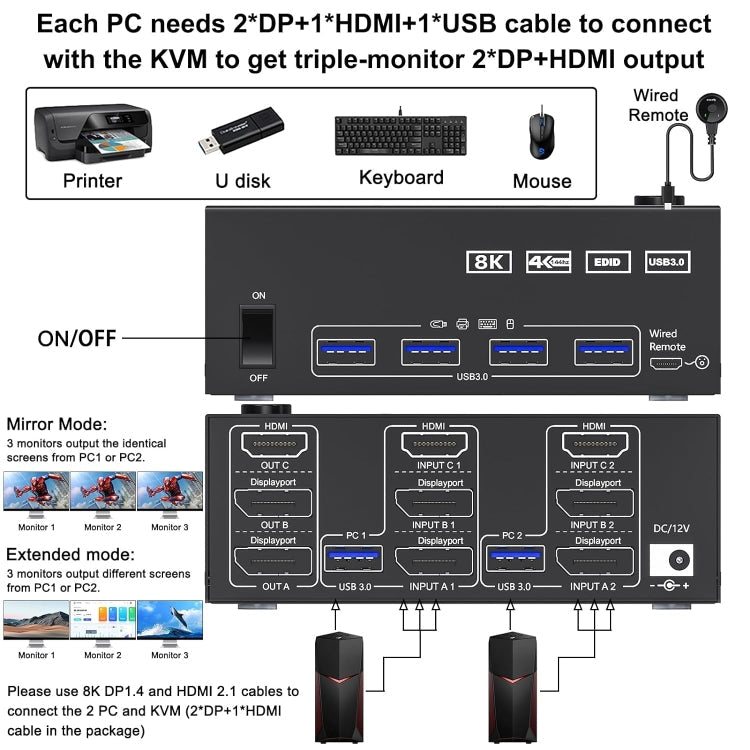

Ensure all connected DP and HDMI cables meet the minimum 1.4/2.1 specification requirements for 8K/144Hz throughput. For stable performance, use high-quality shielded cables within the specified length limits. This device is plug-and-play and requires no additional software drivers for standard OS environments (Windows, macOS, Linux).
